The following machine types support the cup cancellation method via offset. The offset value is manufacturer-specific and can be found in the following table:
Manufacturer
Machine type
Offset value
Sielaff
Tabletop
30
Standing device
50
Rhea Vendors
Coffee Europe
20
Luce X2
60
Luce Zero.0
30
Settings Sielaff
Check the following settings in the patch menu, the installation menu and the prices and adjust them there if necessary.
Settings in patchmenu M - 8 - E 99M 55M
Setting
Option
PRODNo. +50
yes
SAVE SETTINGS
yes
After pressing the "E" key
"done" appears in the display
as confirmation!
Settings in installation menu M - 7 - E
Setting
Option
cup elevator
No cup requirement
Price settings M - 1 - E
Selection
cup size
Price
200
large
e.g. 0,20€
201
small
e.g. 0,10€
Settings in Vensoft
Adjustment of machine type
In the machine type, an “offset” value must be stored in Vensoft.
Set offset in the machine type

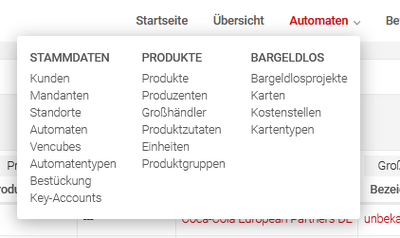

In Vensoft at settings ⇒ master data ⇒ machine type, can be filtered according to the respective machine type and opened up.
Menü Automatentyp
Menü Automatentyp
Alternatively, you can find at machines ⇒ machines the respective vending machine. The stored machine type can be opened via a direct link within the machine details.
Im nächsten Schritt mit "Bearbeiten", den vom Automatenhersteller vorgeschriebenen Offsetwert (⇒ Kapitel 1) eingeben und mit "Ok" Speichern.
Einstellung Offset
Adjustment of products and product ingredients
Create product ingredient "cup"
In Vensoft at machines ⇒ products ⇒ product Ingredients section, create a new product ingredient called "cup". To do so, click the "+" button.
Produktzutaten
In the next step, the product ingredient "cup" can be created. If multiple cup sizes are available, a separate "cup" product ingredient must be created for each cup size (e.g., "large cup" and "small cup"). Save with "OK."
Produktzutaten
Create product "cup"
In Vensoft at machines ⇒ product, create a new product "cup," in the products section. To do so, click the "+" button.
Produkte
The next step is to create the product "cup". If multiple cup sizes are available, a separate "cup" product must be created for each cup size (e.g., "large cup" and "small cup"). Save with "OK."
Produkte
Create product "cup" in the assembly
In Vensoft at machines ⇒ assembly create the new product "cup" in the inventory of the corresponding hot beverage machine. To do this, search for the inventory of the machine you want to configure using the filter, select it, and click the "+" button.
Bestückung
In the next step, the product "cup" is added to the inventory. Under Products, select the "cup" you just created. Here, assign the price previously set in the vending machine control to the respective cup. After selecting all properties, save with "OK."
Bestückung
Now, at the very bottom of the new layout, open "Products without selectors" and click on the "+" button.
Bestückung
Now assign the specified offset value for the machine type to the selector for the product "cup". (In this example, 50)
Bestückung
Create a recipe for the product "cup" in the assembly
The exact composition of each hot beverage is specified in the inventory under ⇒ "Recipe". Here, assign exactly one item to each product, which can be purchased with or without a cup, for the product ingredient "cup".
Finally, in Vensoft, under Machines ⇒ Machines, the cup cancellation method "Offset" must be selected and saved for the respective hot beverage machine.
After saving the settings in Vensoft under Automat, the Vencube configuration will be automatically adjusted via the platform. Transferring the configuration may take a few minutes.
Examination
Ensure that all steps listed in this manual have been completed chronologically. Check: The price and product settings for the cup in the vending machine control system itself, as well as the following settings in Vensoft, must be configured correctly: The vending machine type, the vending machine, and the vending machine's inventory, including the product ingredient, recipe, and the product "cup", must be entered correctly. After successfully completing all settings, the transaction records must be checked for accuracy. These can be found under Transaction Data ⇒ Sales.
